Aérospatiale Helicopter Corporation
Eurocopter MH-65 Dolphin

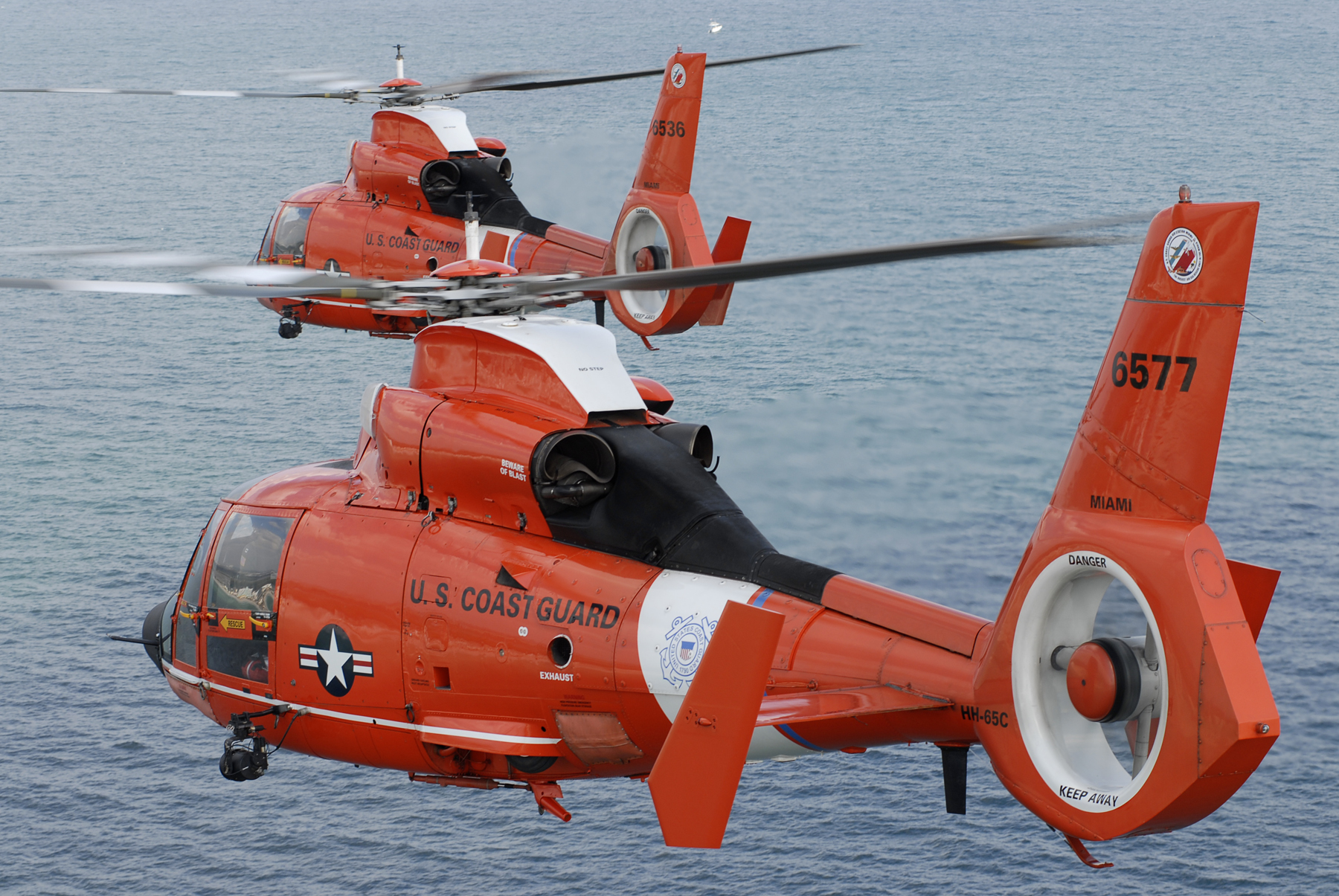

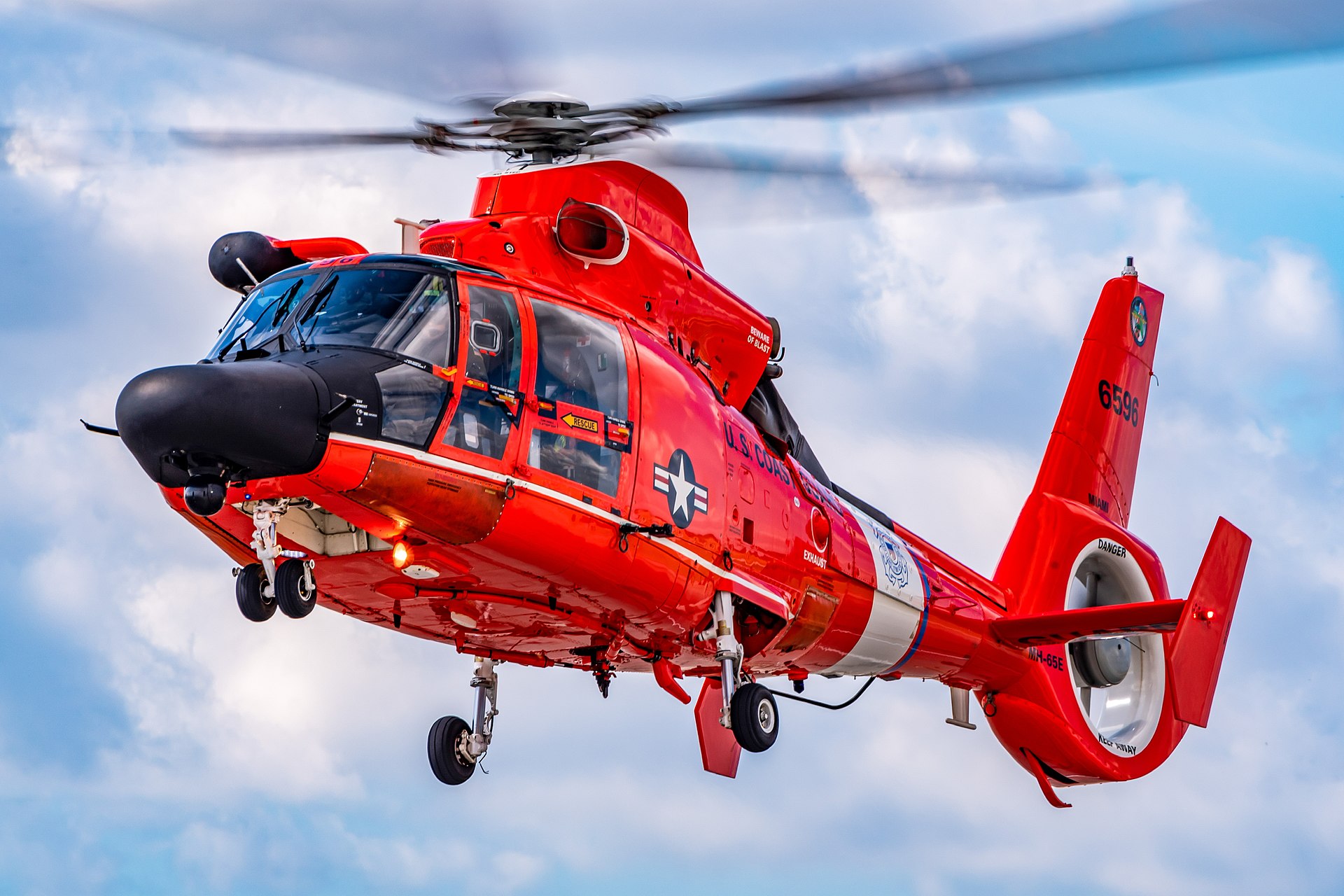

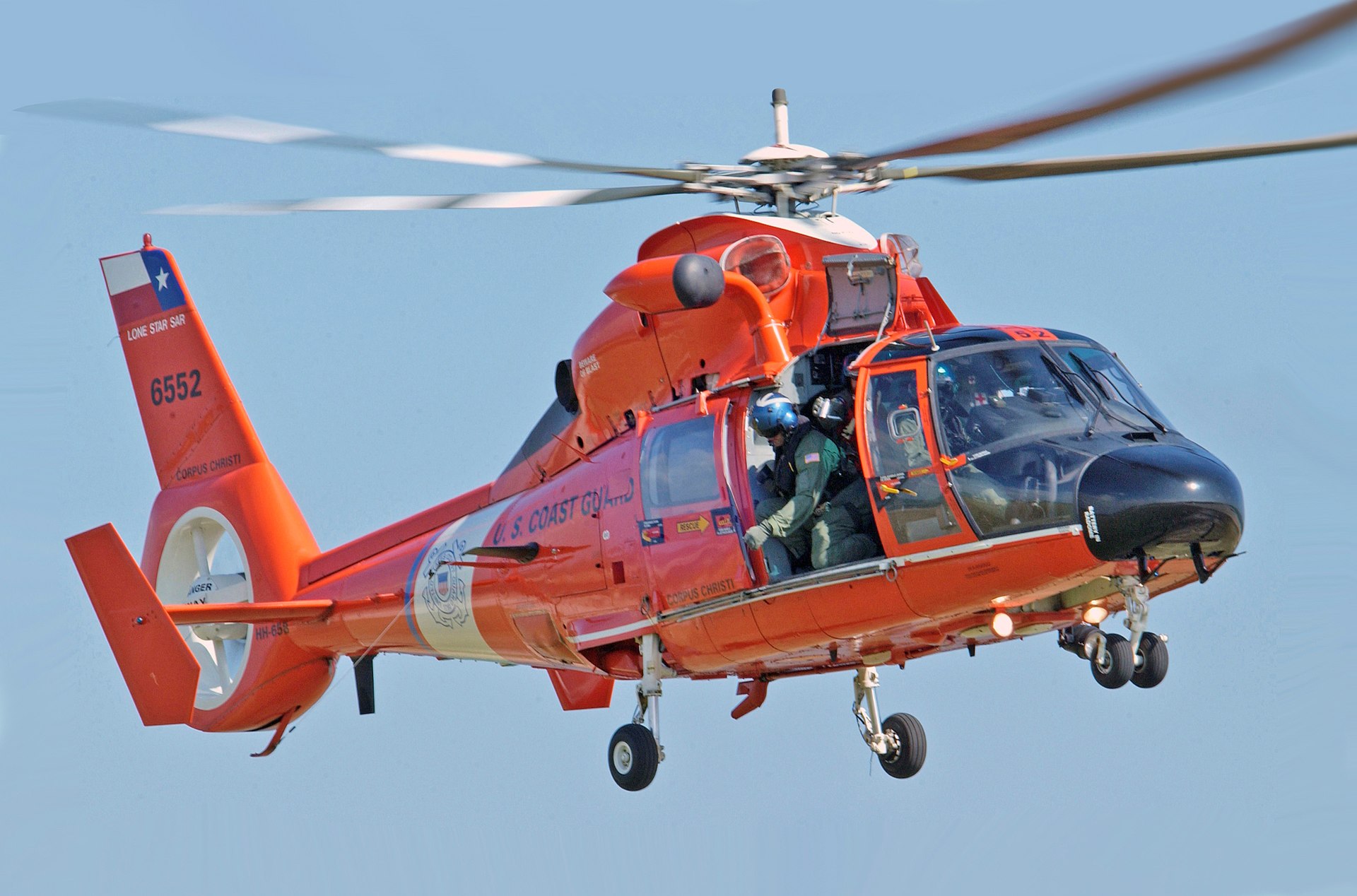

The Eurocopter MH-65 Dolphin is a twin-engined helicopter operated by the United States Coast Guard (USCG) for medevac-capable search and rescue (SAR) and armed Airborne Use of Force missions. It is a variant of the French-built Eurocopter AS365 Dauphin.

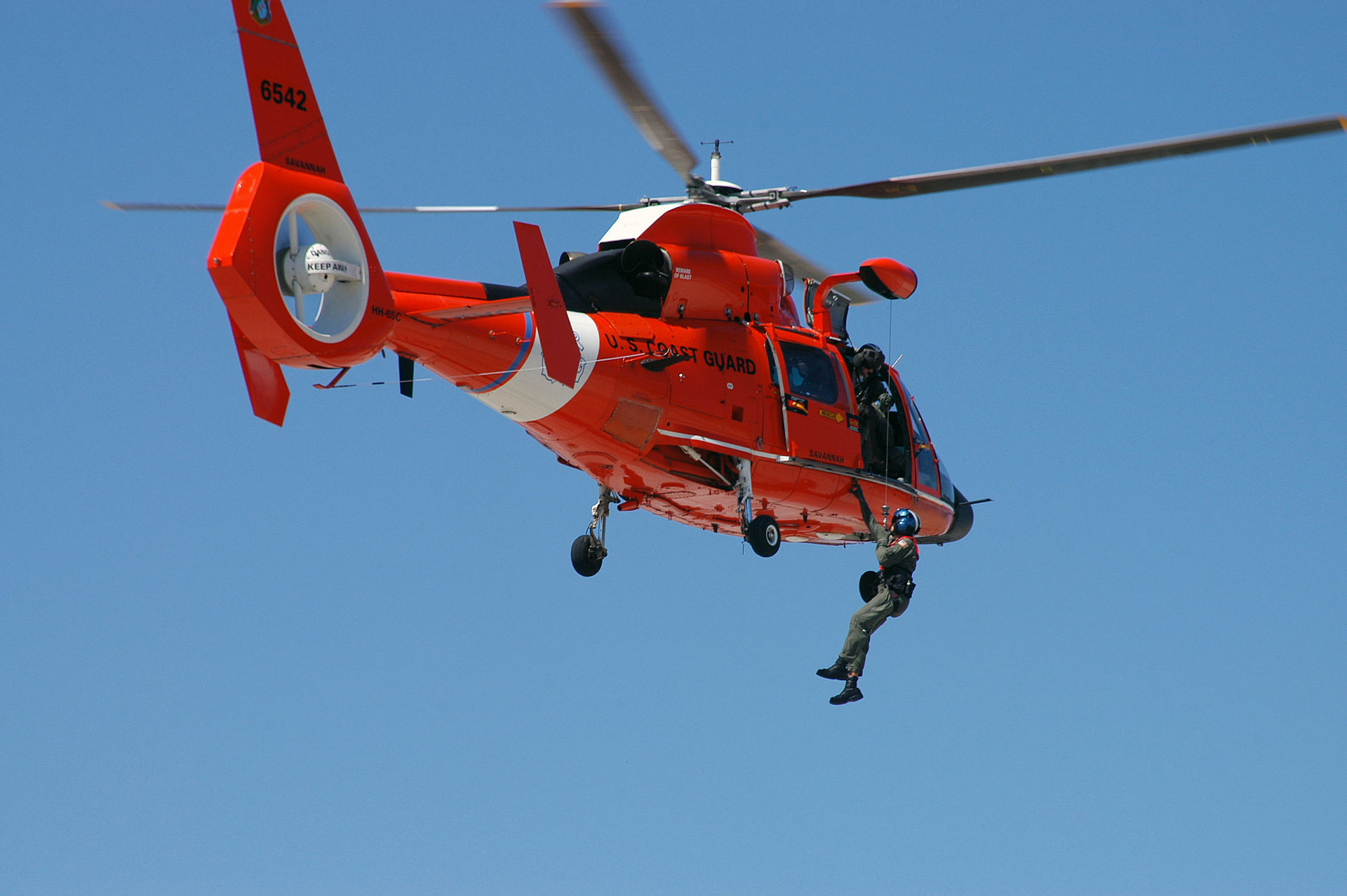

The SA366 G1 Dauphin version was selected by the United States Coast Guard in 1979 as its new short range recovery (SRR) air-sea rescue helicopter, replacing the Sikorsky HH-52A Sea Guard. In total 99 helicopters, optimised for the USCG's search and rescue role tasks and given the designation HH-65A Dolphin, were acquired. Unlike the HH-52, the HH-65A is not able to perform water landings.[1] The HH-65 normally carries a crew of four: Pilot, Copilot, Flight Mechanic and Rescue Swimmer.
Eurocopter MH-65 Dolphin CHARACTERISTICS
General characteristics
Crew: 2 pilots and 2 crew
Length: 11.6 m (38 ft 1 in)
Height: 4 m (13 ft 1 in)
Empty weight: 3,128 kg (6,896 lb)
Max takeoff weight: 4,300 kg (9,480 lb)
Powerplant: 2 × Turbomeca Arriel 2C2-CG turboshaft engines, 636 kW (853 hp) each
Main rotor diameter: 11.9 m (39 ft 1 in)
Main rotor area: 111.22 m2 (1,197.2 sq ft)
Performance
Maximum speed: 330 km/h (210 mph, 180 kn)
Cruise speed: 240 km/h (150 mph, 130 kn)
Range: 658 km (409 mi, 355 nmi)
Service ceiling: 5,486 m (17,999 ft)
Armament
Guns:
1 x 7.62 mm M240 machine gun
1 x Barrett M107 0.50 in (12.70 mm) caliber precision rifle
The Dolphin is usually deployed from shore but it can be deployed from medium and high endurance Coast Guard Cutters, as well as the Polar Icebreakers.
