Lockheed
U-2

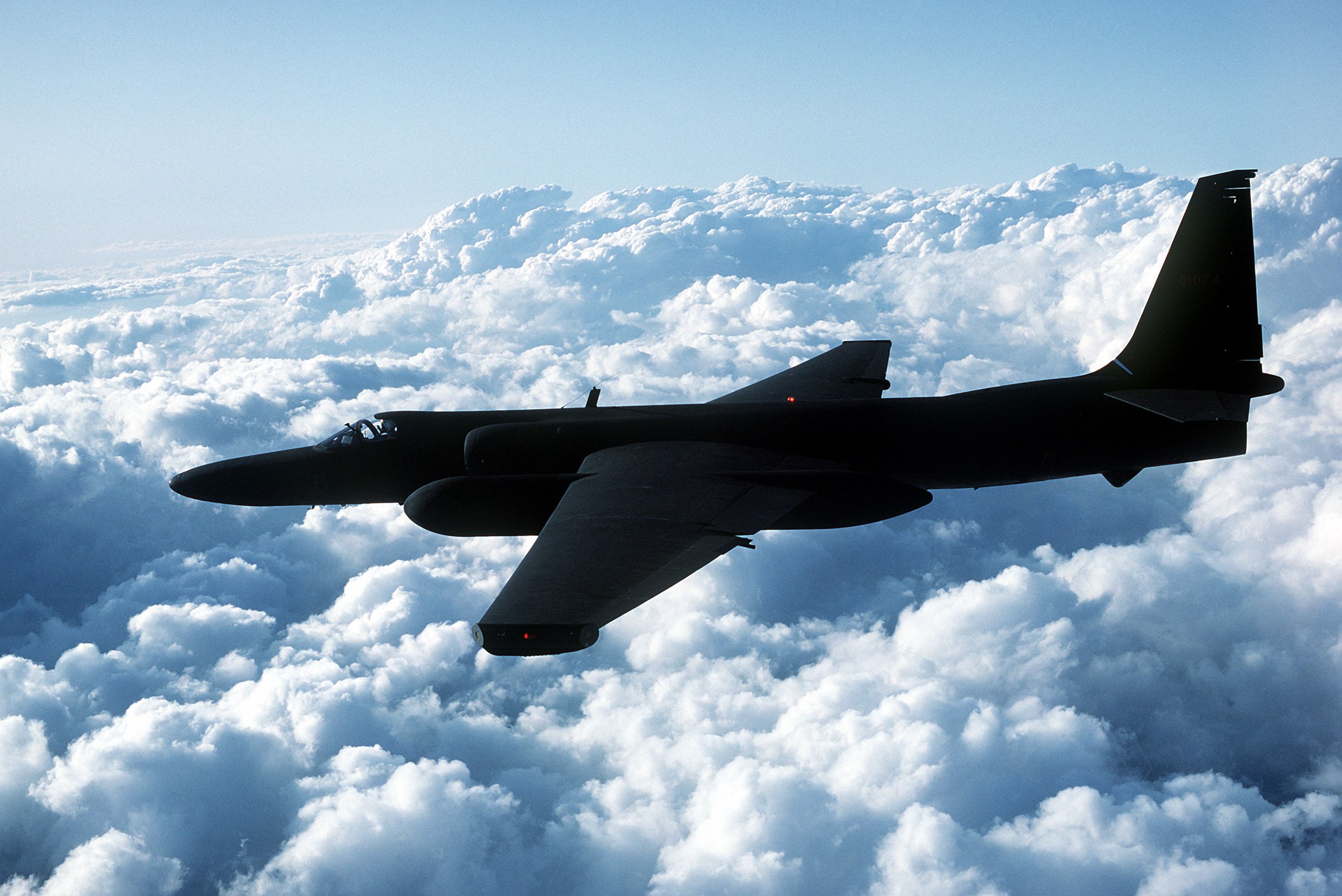

The Lockheed U-2, nicknamed "Dragon Lady", is an American single-engine, high altitude reconnaissance aircraft operated since the 1950s by the United States Air Force (USAF) and the Central Intelligence Agency (CIA). It provides day and night, high-altitude (70,000 feet, 21,300 meters), all-weather intelligence gathering.
The Lockheed U-2, nicknamed "Dragon Lady", is an American single-engine, high altitude reconnaissance aircraft operated since the 1950s by the United States Air Force (USAF) and the Central Intelligence Agency (CIA). It provides day and night, high-altitude (70,000 feet, 21,300 meters), all-weather intelligence gathering.
Lockheed Corporation originally proposed the aircraft in 1953. It was approved in 1954, and its first test flight was in 1955. It was flown during the Cold War over the Soviet Union, China, Vietnam, and Cuba. In 1960, Gary Powers was shot down in a CIA U-2C over the Soviet Union by a surface-to-air missile (SAM). Major Rudolf Anderson Jr. was shot down in a U-2 during the Cuban Missile Crisis in 1962.
U-2s have taken part in post-Cold War conflicts in Afghanistan and Iraq, and supported several multinational NATO operations. The U-2 has also been used for electronic sensor research, satellite calibration, scientific research, and communications purposes. The U-2 is one of a handful of aircraft types to have served the USAF for over 50 years, along with the Boeing B-52, Boeing KC-135, Lockheed C-130 and Lockheed C-5. The newest models (TR-1, U-2R, U-2S) entered service in the 1980s, and the latest model, the U-2S, had a technical upgrade in 2012. The U-2 is currently operated by the USAF and NASA.
U-2 CHARACTERISTICS
General characteristics
Crew: 1
Capacity: 5,000 lb (2,300 kg) payload
Length: 63 ft 0 in (19.20 m)
Wingspan: 103 ft (31 m)
Height: 16 ft 0 in (4.88 m)
Wing area: 1,000 sq ft (93 m2)
Airfoil: root: NACA 63A409; tip: NACA 63A406[214]
Empty weight: 16,000 lb (7,257 kg)
Max takeoff weight: 40,000 lb (18,144 kg)
Fuel capacity: 2,950 US gal (2,460 imp gal; 11,200 L)
Powerplant: 1 × General Electric F118-101 turbofan engine, 17,000 lbf (76 kN) thrust
Performance
Cruise speed: Mach 0.715 (412 kn; 470 mph; 760 km/h) at 72,000 ft (22,000 m)[215]
Cruise speed: 413 kn (475 mph, 765 km/h) at 65,000 ft (20,000 m)[216]
Stall speed: 65 kn (75 mph, 120 km/h) [215]
Range: 6,090 nmi (7,010 mi, 11,280 km) plus
Endurance: 12 hours[217]
Service ceiling: 80,000 ft (24,000 m) plus[215]
Rate of climb: 9,000 ft/min (46 m/s)
Time to altitude: 60,000 ft (18,000 m) in 12 minutes 30 seconds[215]
Lift-to-drag: 25.6[216]
Wing loading: 40 lb/sq ft (200 kg/m2)
Thrust/weight: 0.425
Fuel consumption: 910 lb/h (410 kg/h) in cruise
The Lockheed U-2, also known as the "Dragon Lady," is so good at flying at extreme altitudes (over 70,000 feet) that pilots need to wear full-pressure space suits just to survive! In fact, because it flies so high, pilots have reported seeing the curvature of the Earth while on missions. It's basically as close as you can get to space without actually leaving the atmosphere!
